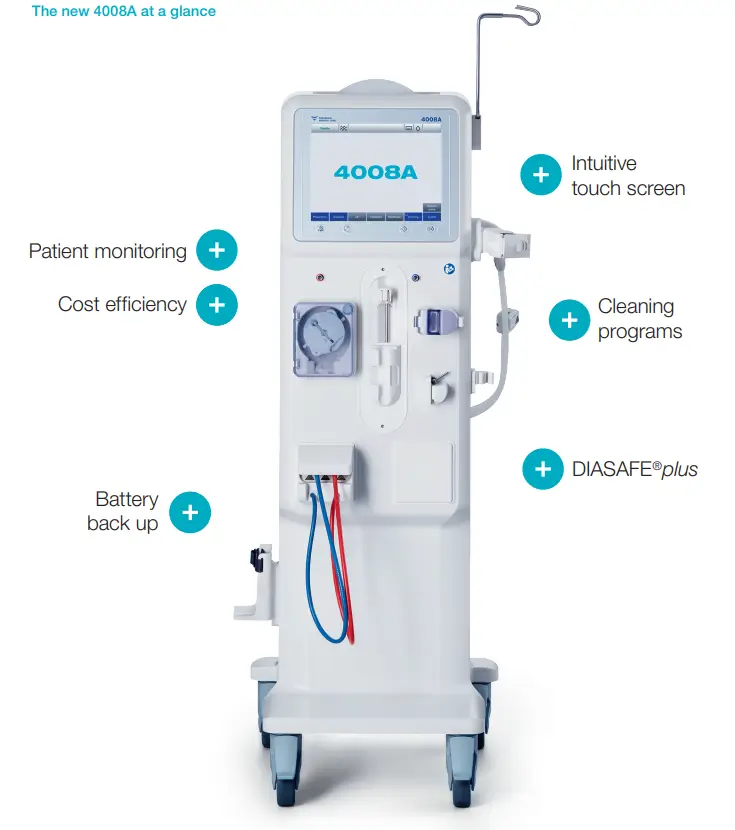

The new 4008A

The 4008A Hemodialysis Machine by Fresenius Medical Care is designed to bring life-changing dialysis to more patients. This state-of-the-art device ensures that individuals with end-stage renal disease (ESRD) receive reliable and effective renal replacement therapy (RRT), regardless of their location or social situation. With the 4008A, Fresenius Medical Care reaffirms its commitment to providing high-quality, accessible dialysis treatment.

Enquiry Form

Related Products

Enquiry Form
Key Features

  • Intuitive Touch Screen:

    • High-resolution display with a chronological workflow from preparation to cleaning.
    • Centralized functions with logical data entry and color-coded status indicators.

  • Standard Cleaning Programs:

    • Reduces contamination risk with thorough cleaning between treatments.
    • Screen lock feature for effective monitor cleaning.

  • Battery Backup:

    • 20 minutes of power reserve ensures patient safety during power outages.

  • DIASAFE®plus:

    • Produces ultrapure dialysis fluid, meeting ISO standards for bacterial and endotoxin reduction.

  • Essential Patient Monitoring:

    • Real-time notifications for changes in treatment parameters.
    • Standard safety alarms and pressure monitoring.
Benefits

  • Increased Accessibility:

    • The 4008A aims to bridge the treatment gap in regions with limited access to RRT.
    • Supports a growing number of patients requiring dialysis, especially in Asia.

  • Enhanced Patient Safety:

    • Equipped with standard safety features such as blood leak detectors, air detectors, and arterial/venous pressure monitoring.
    • Battery backup ensures safe termination of dialysis during power outages.

  • Medical Advantages:

    • Use of ultrapure dialysis fluid with DIASAFE®plus reduces inflammation and preserves residual renal function (RRF).
    • Helps lower cardiovascular risks and improve response to erythropoietin (EPO).

  • Cost Efficiency:

    • Affordable without compromising essential safety and quality.
    • Standard ultrapure dialysis fluid and non-binding bloodlines help control costs.

  • User-Friendly Design:

    • Intuitive touch screen interface for easy operation.
    • Compact and maneuverable for ease of relocation and transportation.
Specifications

  • Dimensions:

    • Height: 149 cm
    • Width: approx. 63 cm
    • Depth: approx. 80 cm
    • Weight: Maximum total weight of 100 kg

  • Water Supply:

    • Inlet pressure: 1.5 to 6.0 bar
    • Inlet temperature: 5°C to 30°C
    • Maximum drain height: 1 m

  • Electrical Data:

    • Power supply: 110 to 240 V AC, 50 to 60 Hz, 10 to 15 A
    • Mean energy consumption: Dialysis: approx. 0.59 kWh per hour

  • Extracorporeal Circuit:

    • Arterial pressure monitoring: –300 to +280 mmHg
    • Venous pressure monitoring: –60 to +520 mmHg
    • Blood pump: 0.30 to 500 mL/min

  • Dialysis Fluid Circuit:

    • Flow range: 300, 500 ml/min
    • Temperature: 35.0°C to 39.0°C
    • Conductivity: 12.8 to 15.7 mS/cm
    • Mixing ratios for acid and bicarbonate components

  • Disinfection Programs:

    • Rinse: 37°C/700 mL/min
    • Heat disinfection: 84°C/700 ml/min
    • Degreasing: 37°C/700 mL/min
